Description

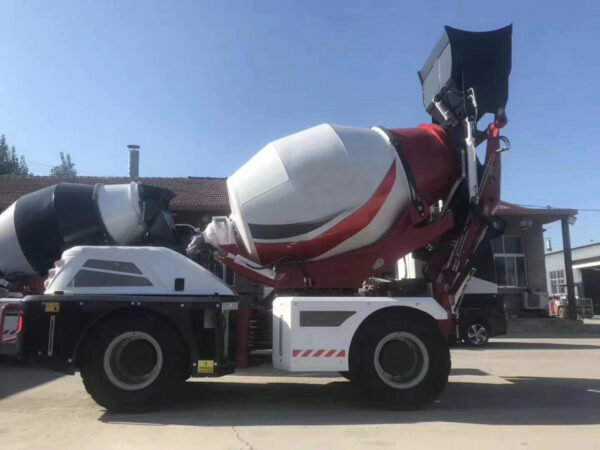

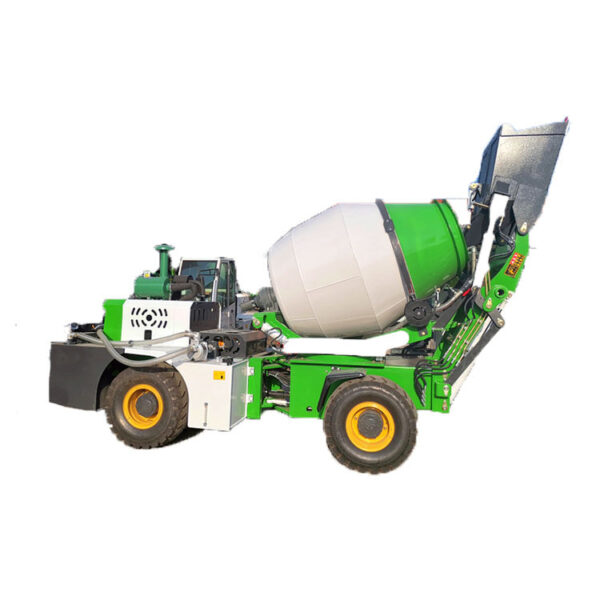

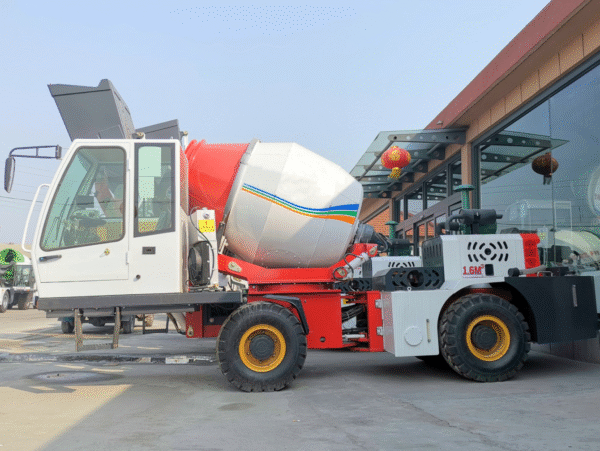

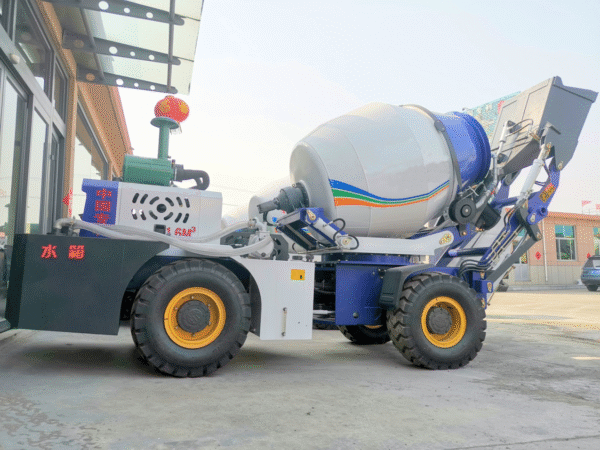

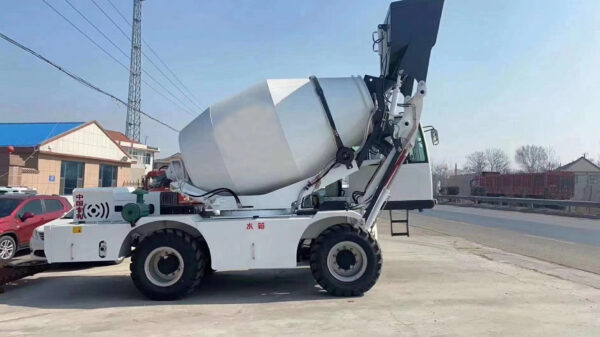

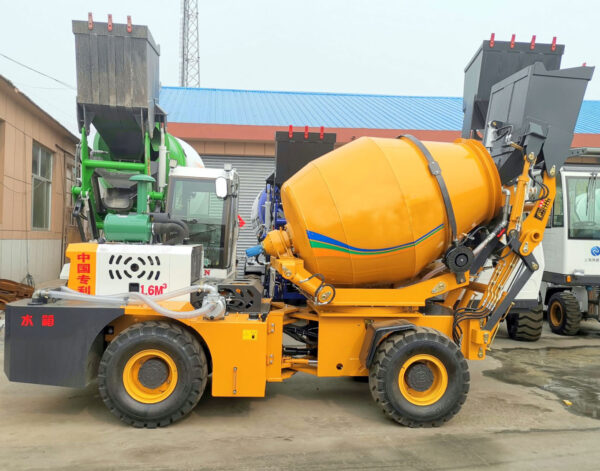

XFM1.6R Self loading Concrete Mixer
Features:
Auto Weighting Scale system (English / Russian / Spanish Version) – (Optional )
Drum Bottom lifting up for increasing speed of discharging concrete
Water Pump
Air-condition – (Optional )
High pressure water pump for cleaning machine – (Optional )
270 degrees discharge angle
Articulated Steering Mode
Parameters:
DIESEL ENGINE
Model: YCD4T22T-105 (YuChai)
Total displacement, no Cylinders: 3850cc－4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 78Kw（106Hp）
Max. Torque: 330Nm@2400rpm
ELECTRIC SYSTEM
Alternator: 28V–500Wa (18A)
Battery: 2×12V–60AH (272A)
Road light system, rear working lights.
STEERING
Articulated Steering by two cylinders move alternately.
Electro-hydraulically controlled mechanical gearbox for “working speed” and “road transfer speed”.
Speed：2 forward gears 2 reverse gears
Ist 0 – 7.0 Km/h 0 – 7.0 Km/h
IInd 7-20 Km/h 7 – 20 Km/h
AXLES AND WHEELS
Front wheel fixed stable
Rear wheel is controlled by two cylinders as articulated type with 30 degrees steering angle.
Tires: … 20.5-16，Max. L: AD2840kg
BRAKES
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
Parameter
| DIESEL ENGINE |
|
| Model |
YCD4T22T-105 (YuChai) |
| Total displacement, no Cylinders |
3850cc－4 in line |
| Injection |
direct with mechanical control |
| Cooling |
water, dry air filter |
| Max. power |
78Kw（106Hp） |
| Max. Torque |
330Nm@2400rpm |
| ELECTRIC SYSTEM |
|
| Alternator |
28V–500Wa (18A) |
| Battery |
2×12V–60AH (272A) |
| Road light system, rear working lights. |
|
| STEERING |
|
| Articulated Steering by two cylinders move alternately. |
|
| Electro-hydraulically controlled mechanical gearbox for “working speed” and “road transfer speed”. |
|
| Speed |
2 forward gears 2 reverse gears |
|
Ist 0 – 7.0 Km/h 0 – 7.0 Km/h |
|
IInd 7-20 Km/h 7 – 20 Km/h |
| AXLES AND WHEELS |
|
| Front wheel fixed stable |
|
| Rear wheel is controlled by two cylinders as articulated type with 30 degrees steering angle. |
|
| Tires |
20.5-16 |
| BRAKES |
|
| Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit. |
|
| Negative type parking brake, with internal wheel hub discs on the front axle. |
|
| WATER SYSTEM |
|
| 24V “Self-priming” volumetric water pump with quick-suction. |
|
| Max. capacity |
90 liters/min. |
| One tank with a total capacity of |
390 liters |
| Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver’s seat. |
|
| Washing vehicles outside by water blast gun via high pressure water pump. |
|
| MIXING AND UNLOADING |
|
| Double-cone drum with double-spiral mixing screws and convex bottom. |
|
| Geometrical drum volume |
2900 liters |
| Drum rotation speed |
18 rpm. |
| Concrete produced as |
1.6 m³ |
| Counter frame mounted on “heavy-duty” ball fifth wheel, with 270° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine. |
|
| Drum raising up to the horizontal position by means of double-acting jacks. |
|
| Unloading chute with mechanical tilting by means of one handle controlled independent from the mixing drum inclination. |
|
| Removable chute if unloading from hopper. |
|
| 2 unloading chute extensions provided as standard equipment. |
|
| EQUIPMENT HYDRAULIC SYSTEM |
|
| Gear pump |
DEHONG (brand) |
| Max. flow rate |
20/50 liters/min. |
| Maximum pressure |
16MPa |
| 3-Handles controlled with multi-function joystick. |
|
| Aluminum heat exchanger for hydraulic oil cooling. |
|
| Pressurized open-circuit intake with oil filter replaceable from the outside. |
|

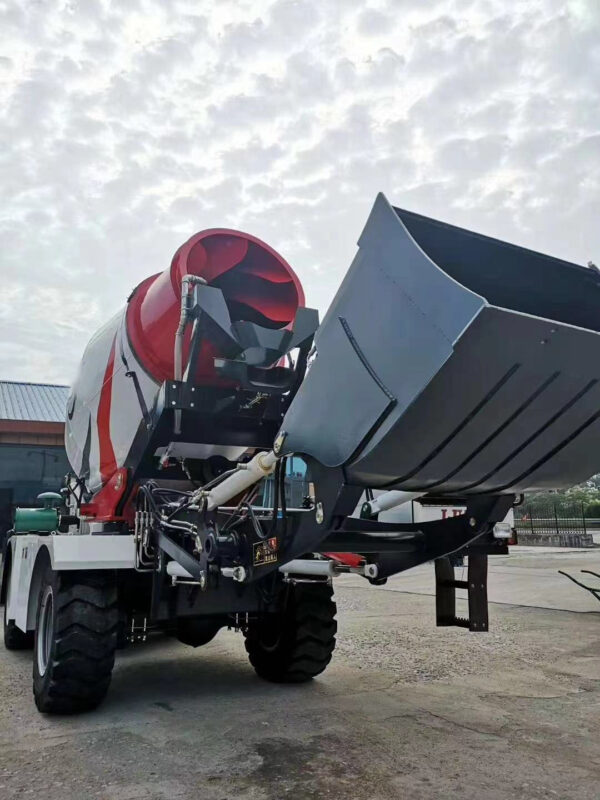

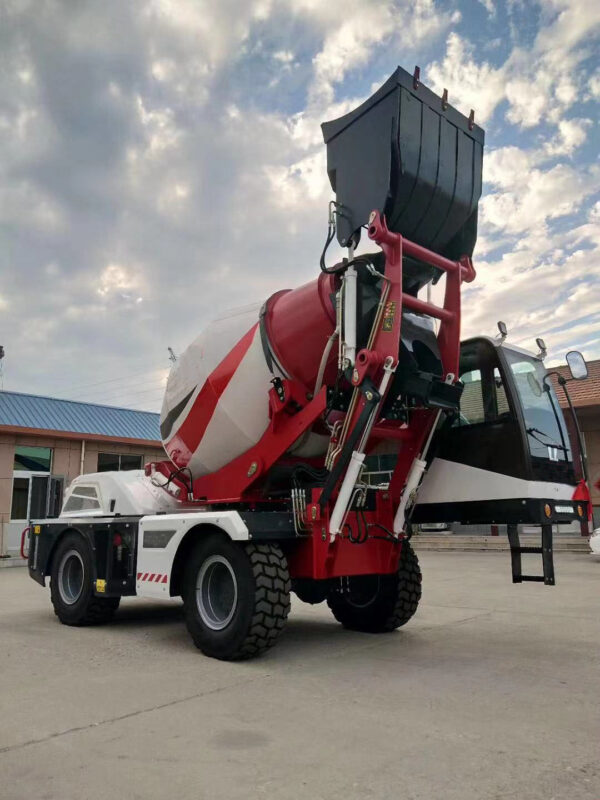

| LOADER |
|
| Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever. |
|
| Volumetric capacity |
350 liters |
| Number of loading times |
around 6 |
| CAB |
|
| Closed cab with heating system, |
|
| Tilting front window, Anatomic seat with flexible suspension and height adjustment, |
|
| SERVICE REFILL CAPACITIES |
|
| Fuel tank |
100 liters |
| Total hydraulic Tank capacity |
100 liters |
| Engine oil |
16 liters |
| WEIGHTS |
|
| Operating weight ………………………….. 5,800 kg |
|
| Max gross weight |
9,000 kg |
| load-carrying capacity |
3,200 kg |
| DIMENSIONS |
|
| Length × Width × Height …………………….7060 × 2210 × 2650 mm |
|
